MOTORIZED PULLEY

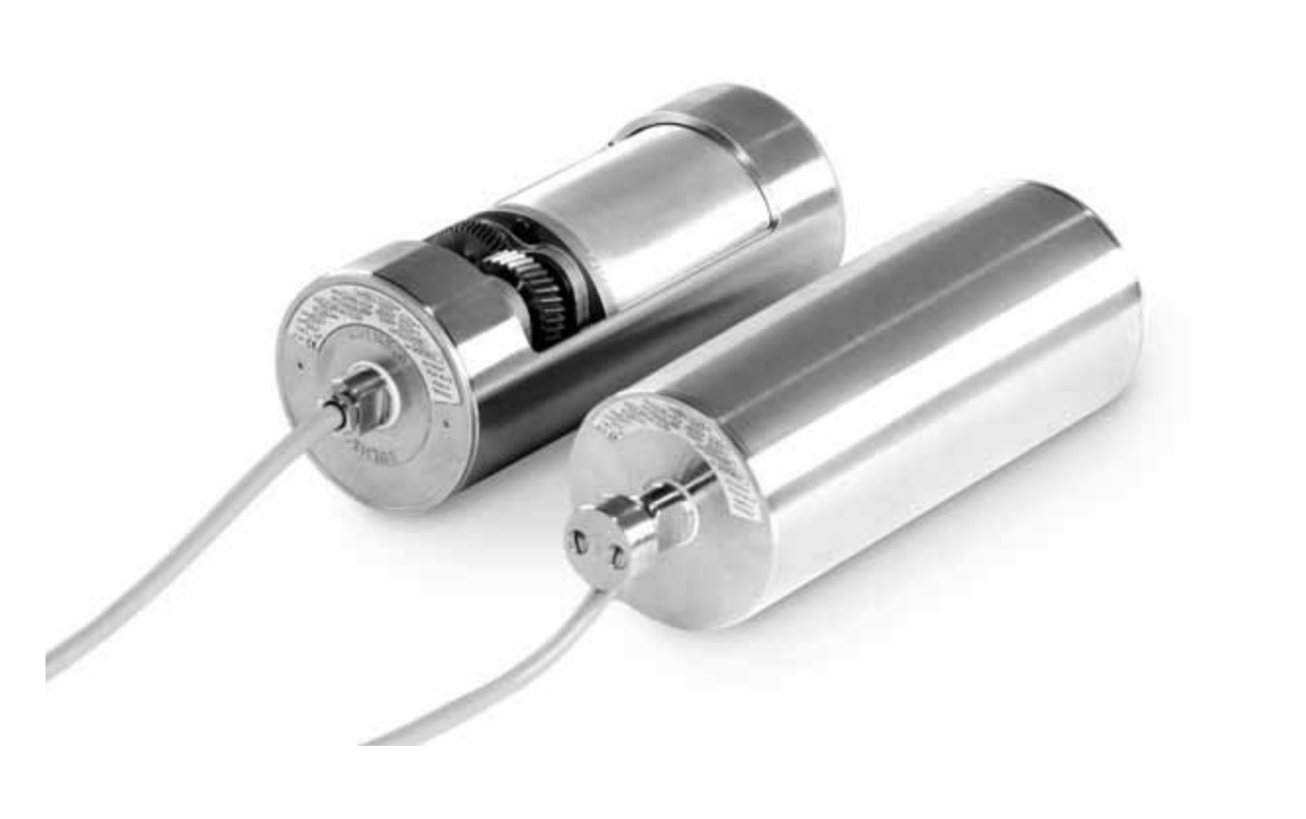

Motorized Pulley 80LP

A very compact strong drive for small high use conveyors

Product description
This Motorized Pulley is perfect for high torque applications with limited space or access.

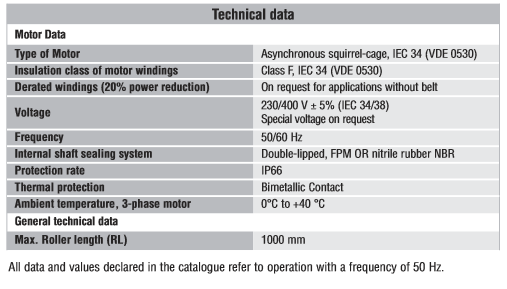

All data and values declared in the catalogue refer to operation with a frequency of 50 Hz

Characteristics
  • Salt water resistant aluminum bearing housings
  • Three phase AC induction motor
  • 3-phase dual voltage is standard
  • Integral motor protection
  • Hardened steel helical gear box
  • Low noise operation
  • Maintenance free
  • Lifetime lubrication
  • Reversible operation
  • Reinforced internal shaft for RL exceeding 500 mm

Applications
  • Small conveyors for feeding materials with frequent cycle
  • Packaging equipment
  • Dynamic weighing equipment
  • Metal detectors
  • Ideal for pharmaceutical industry
  • Meat processing
  • Steel or plastic modular belts applications
  • Dry, humid and wash down applications

The range of Rulmeca Motorized Pulleys have a 2 years’ warranty.
