MOTORIZED PULLEY

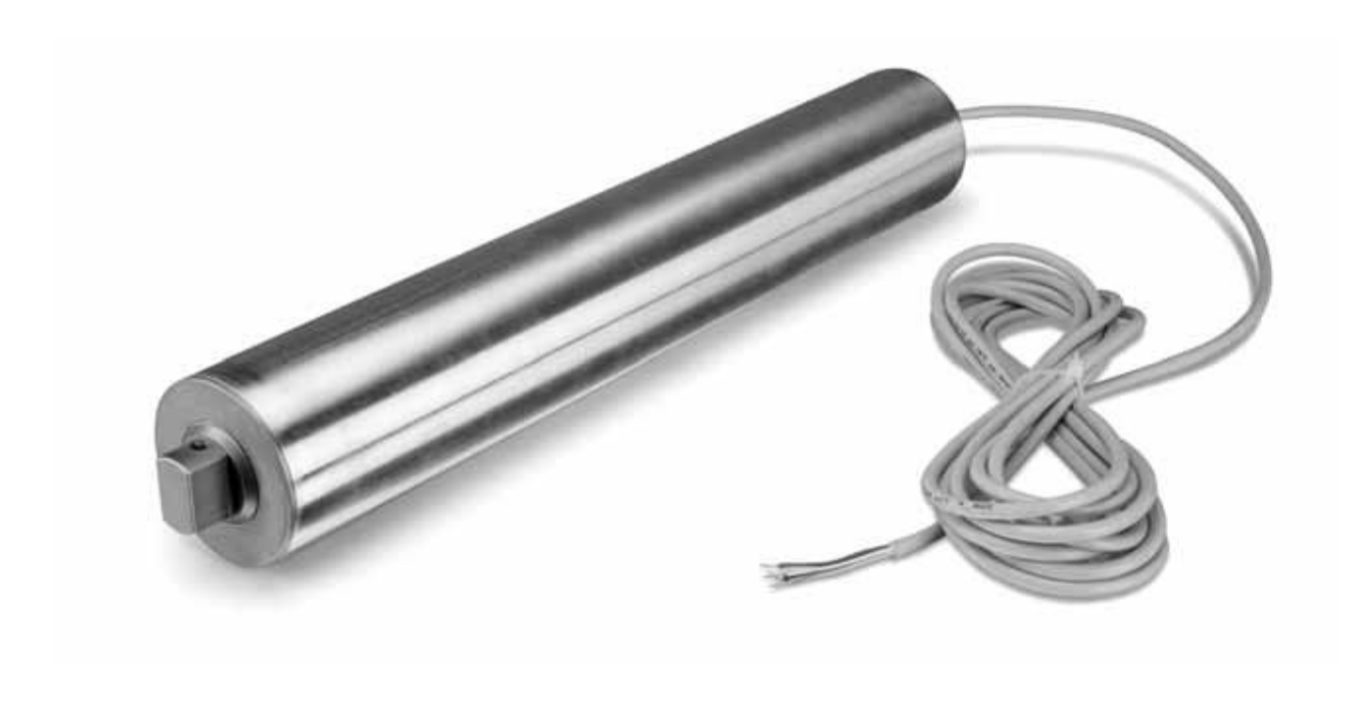

Motorized Pulley 80LP

A strong capable drive for small light duty conveyors

Product description
Due to its strength, reliability and no need for maintenance this motorized pulley is used in small conveyors, packaging machines and simple transfer units.




Motorized Pulleys with RL length greater than 550 mm have reinforced shaft. All data and values declared in the catalogue refer to operation with a frequency of 50 Hz

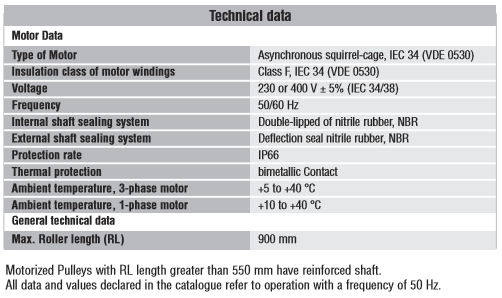

Characteristics
  • Asynchronous motor AC three-phase or single-phase
  • Single supply voltage
  • on request: 3-phase dual voltage (possible delta/star connection)
  • Integral motor protection
  • Gearbox planetary-type polymer or polymer / steel combination
  • Low noise operation
  • Light and distributed weight
  • Maintenance free
  • Lifetime lubrication
  • Reversible operation

Applications
  • Small conveyors for light loads, non-continuous use
  • Transfer Conveyors
  • Packaging machines for light loads
  • Food processing equipment, metal detection, x-ray
  • Cash desks in supermarkets
  • Dry, damp and wash down applications

The range of Rulmeca Motorized Pulleys have a 2 years’ warranty.
