MOTORIZED PULLEY

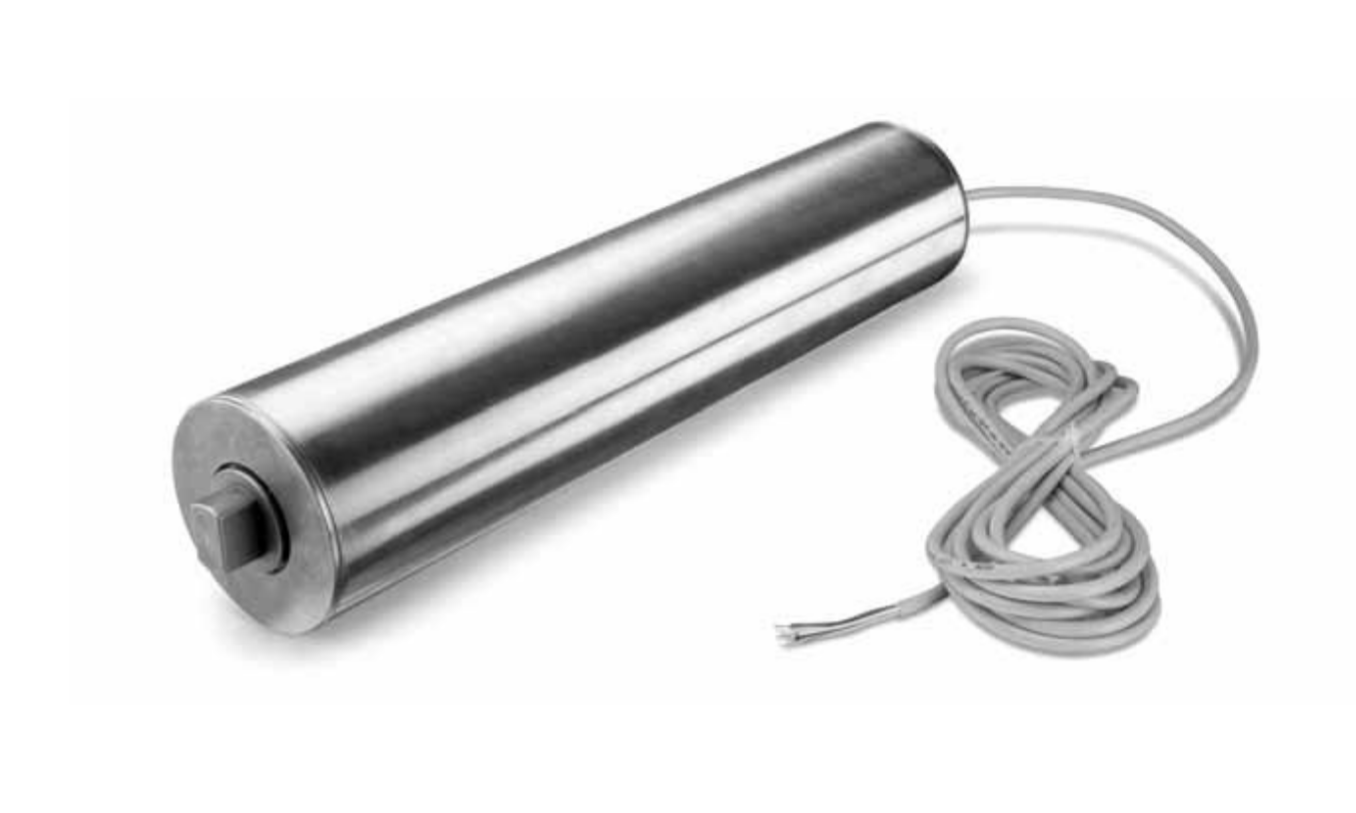

Motorized Pulley 113LP

A powerful drive for light duty conveyors

Product description
This Pulley is the ideal operator for light and medium conveyors, for non-continuous use.

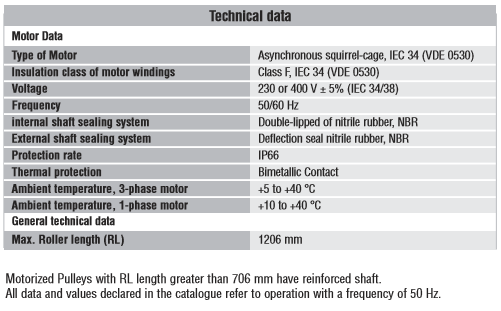

Motorized Pulleys with RL length greater than 706 mm have reinforced shaft. All data and values declared in the catalogue refer to operation with a frequency of 50 Hz.

Characteristics
  • 3-phase or 1-phase AC induction motor
  • Single supply voltage
  • on request: 3-phase dual supply voltage (possible delta/star connection)
  • Integral motor protection
  • Gearbox planetary-type polymer or polymer / steel combination
  • Low noise operation
  • Light and distributed weight
  • Maintenance free
  • Reversible operation

Applications
  • Conveyors for light loads, non continuous use
  • Recycling bottles
  • Packaging equipment
  • X-ray inspection systems at airports
  • Pharmaceutical industry
  • Food processing
  • Cash desks in supermarkets
  • Dry, Damp and frequent wash down applications

The range of Rulmeca Motorized Pulleys have a 2 years’ warranty.

MOTORIZED PULLEY
GENERAL CATALOGUE

E-CATALOGUE DOWNLOAD
