Rollers

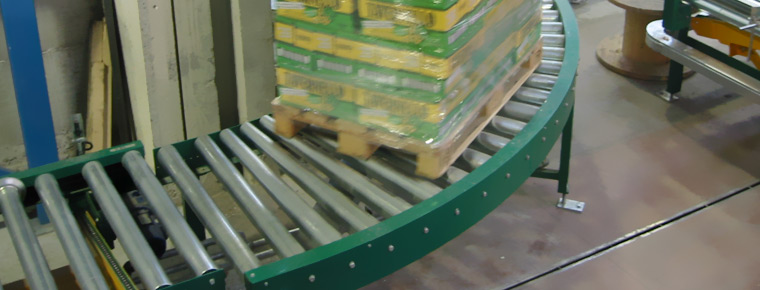

ROLLERS FOR CURVES



Curves can be with tapered rollers or cylindrical.
The drive is transmitted with chain loops and the gear motor is typically in a central position.
The driven tapered rollers permit the design of flat curves with reduced dimensions, guaranteeing the regular load movement. For the straight section it is recommended to maintain the same “EL” width of the curves, compatible with the standard length of taper rollers.
The tapered rollers with belt transmission are introduced in the section “Rollers for belt driven conveyors”.

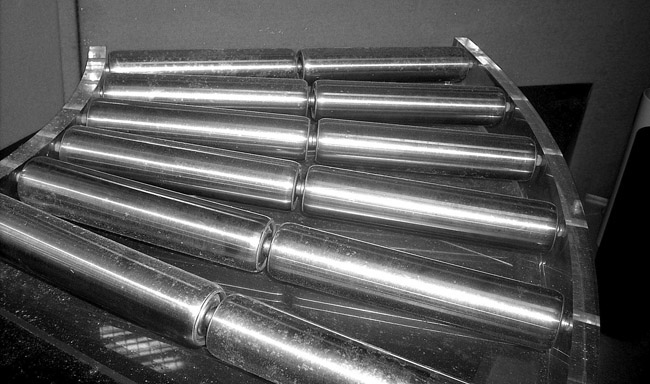

Double Idle Rollers


    Double idle rollers for curves

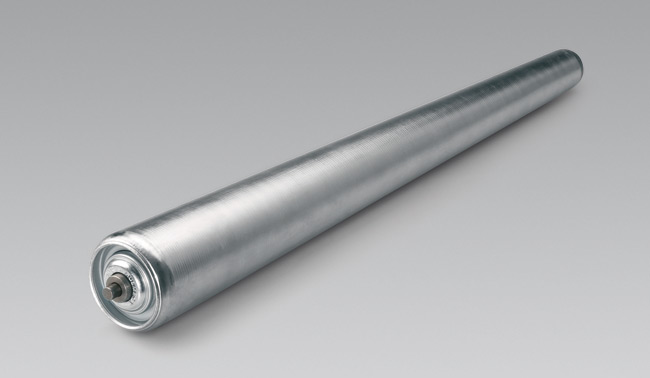

KRF


    Idle steel tapered rollers

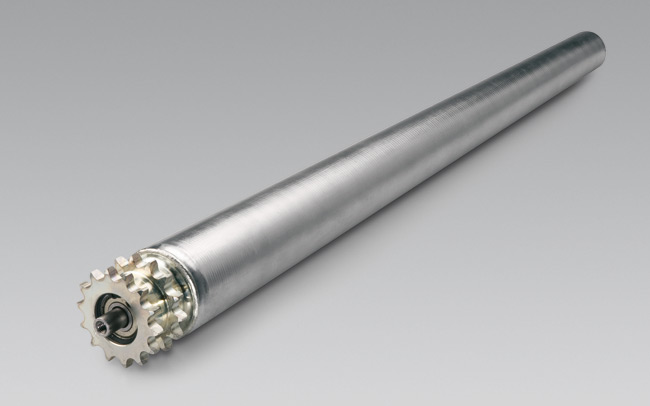

KRM/S2


    Steel driven tapered rollers P2C

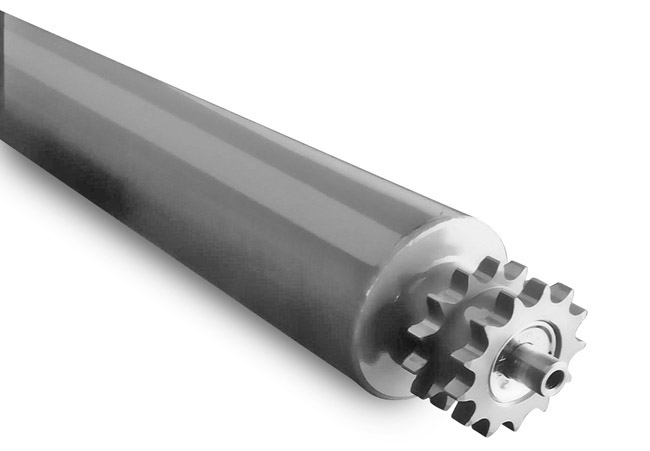

KRM/S3


    Heavy duty driven tapered rollers for pallet transport

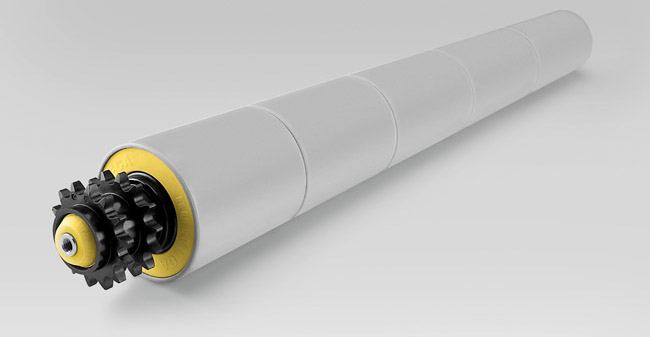

KRO Driven Tapered Rollers


    Driven tapered rollers P2C with Polypropylene external body, Polyamide pinion P2C

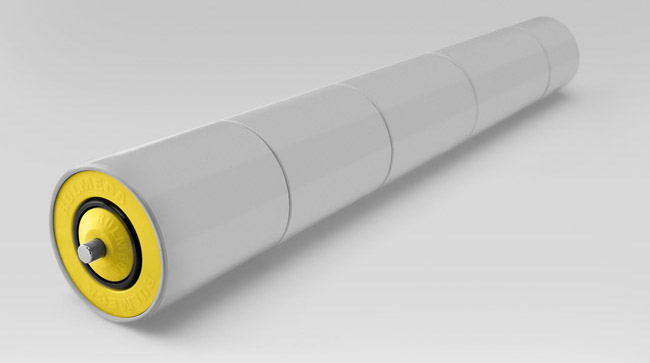

KRO Idle Tapered Rollers


    Idle tapered rollers with Polypropylene external body


GUIDELINES.PDF [PDF]


MEASUREMENT UNITS.PDF [PDF]


INFORMATION PLASTIC MATERIALS.PDF [PDF]


CODE DESIGNATION.PDF [PDF]


CONSTRUCTION CRITERIA CURVES.PDF [PDF]
